Setting Up Operation Panel with IJ Scan Utility (Windows)

IJ Scan Utility allows you to specify how to respond when scanning from the operation panel.

Note

  • The screens for scanning with Auto Scan from the operation panel are used as examples in the following descriptions.

  1. Start IJ Scan Utility.

  2. Click Settings....

    figure: IJ Scan Utility

    The Settings dialog box appears.

  3. Select a scan mode on the (Scanning from the Operation Panel) tab.

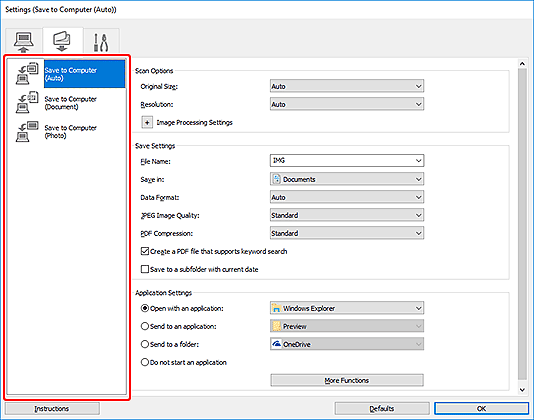

    figure: Settings dialog box

    Note

  4. Set Scan Options.

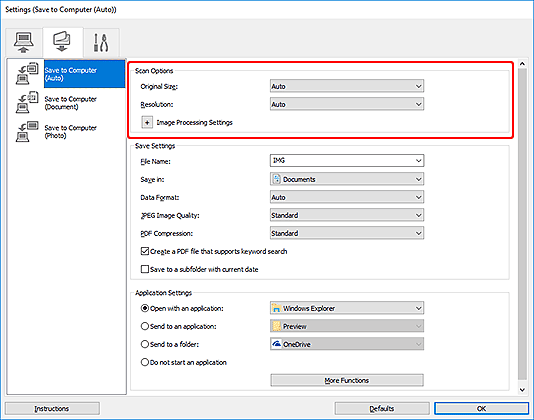

    figure: Settings dialog box

  5. Specify the file name and other settings in Save Settings.

    figure: Settings dialog box

  6. Select the application you want to start after scanning in Application Settings.

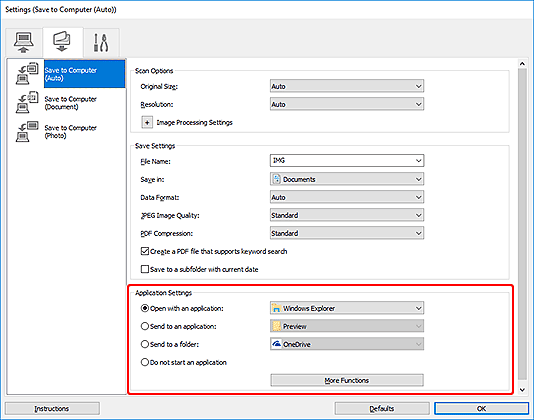

    figure: Settings dialog box

  7. Click OK.

    The responses will be executed according to the specified settings when you start scanning from the operation panel.
